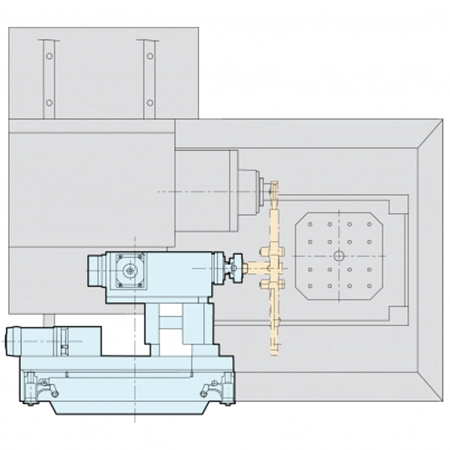

Suitable for moving column type machine with cartridge type spindle. Compact size of Arm drive unit enables fast tool change operation with minimum arm length. Tool pockets of aluminium alloy, Tool gripper plates designed as separate parts for easy conversion of ATC from one tool standard to another, Magazine capacities of 20, 24, 30 and 40 tools.
Face Mounting ATC Models are available
| Taper Size | Magazine Capacity (Tools) | Max. Tool Dia (mm) | Max. Tool Length (mm) | Max. Tool Weight (kg) | Tool Change Time for Standard Arm in sec | Gripper Arm Size (mm) | Taper Options | |
|---|---|---|---|---|---|---|---|---|
| Std. | Option | |||||||
| 40 | 20 | 80 | 300 | 8 | 1.4 | 225 | 250 | BT/ISO/CAT/HSK/CAPTO |
| 24 | ||||||||
| 30 | 75 | 275 | ||||||
| 40 | ||||||||
| 50 | 24 | 125 | 400 | 20 | 3 | 300 | 325 | BT/ISO/CAT/HSK/CAPTO |
| 30 | 350 | |||||||
