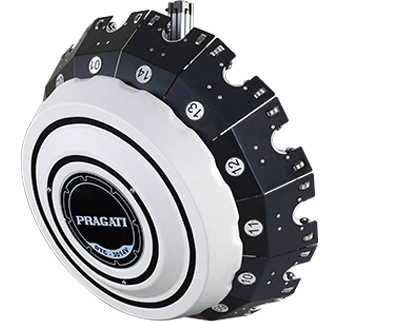

Tool gripper swivelling type : Gripper in tool change position swivels during tool change operation while magazine remains stationtary. Servo motor drive for magazine for fast tool change operation, Choice of steel or aluminium grippers, Magazine capacities of 14, 16, 20, 21 and 25 tools.

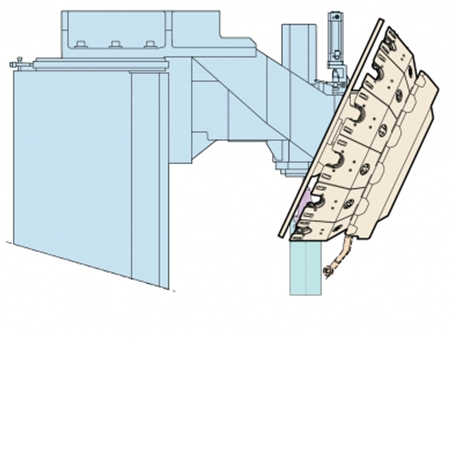

Face Mounting ATC Models are available
| Taper Size | Magazine Capacity (Tools) | Max. Tool Dia (mm) | Max. Tool Length (mm) | Max. Tool Weight (kg) | Tool Change Time for Standard Arm in sec | Time for 180° Rotation (sec) | Taper Options |
|---|---|---|---|---|---|---|---|
| 30 | 14 | 80 | 200 | 3 | 0.17 | 0.4 | BT/ISO |
| 21 | |||||||
| 25 |
