VMC Type

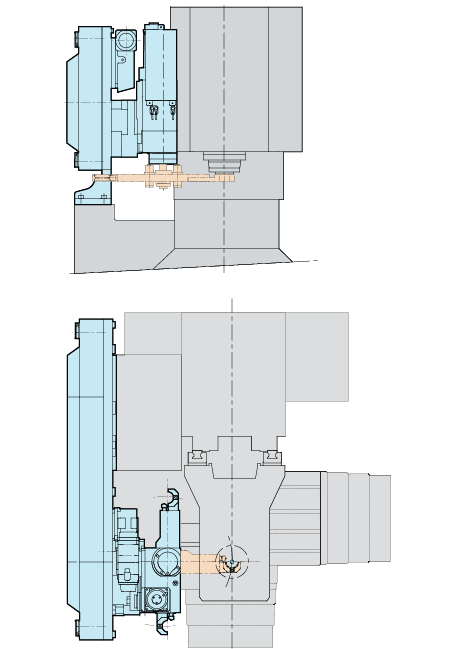

Foot Mounting
Magazine rotation either by cam index or by servo drive.
Encoder for synchronisation of arm movements with tool clamp / unclamp in machine spindle.
Tool Gripper plates are designed as separate parts for easy conversion of ATC from one tool standard to another.
Choice of Aluminium or high Strength plastic tool pockets.
Option of mechanical tool load unload feature.

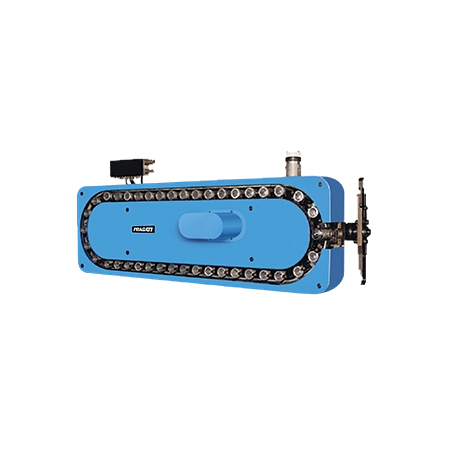

Foot mounting
Magazine capacities of 30, 32, 40, 60 and 90 tools.
Floor Mounting ATC Models are available
| Taper Size | Magazine Capacity (Tools) | Max. Tool Dia (mm) | Max. Tool Length (mm) | Max. Tool Weight (kg) | Tool Change Time for Standard Arm in sec | Gripper Arm Size (mm) | Taper Options | |
|---|---|---|---|---|---|---|---|---|
| Std. | Option | |||||||
| 30 | 50 | 50 | 200 | 5 | 1.4 | 225 | 175 | BT/ISO/CAT/HSK/CAPTO |
| 200 | ||||||||
| 40 | 30 | 78 | 300 | 8 | 1.4 | 225 | 250 | |
| 32 | 275 | |||||||
| 40 | 300 | |||||||
| 60 | 325 | |||||||
| 50 | 40 | 125 | 400 | 20 | 3.0 | 300 | 325 | |
| 350 | ||||||||
| 375 | ||||||||
| 400 | ||||||||
