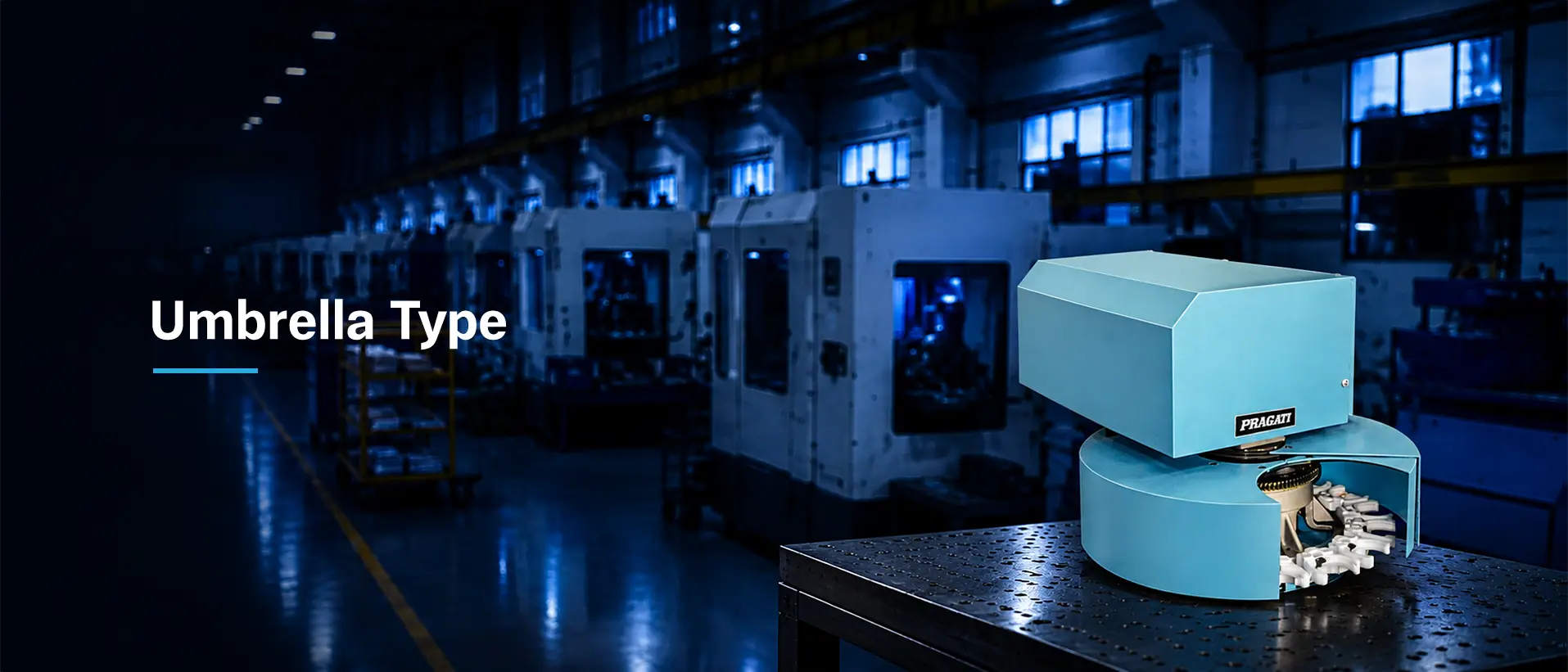

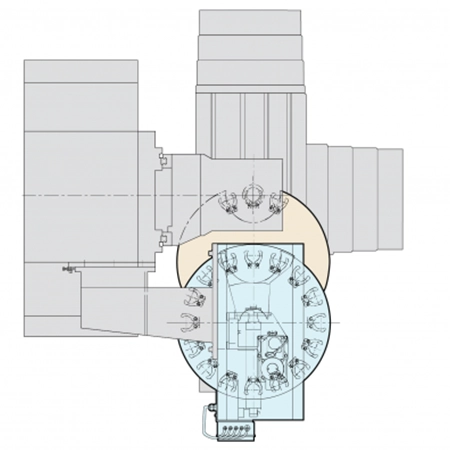

Arm less ATC, Motorised cam index rotation of magazine, Pneumatic cylinder for magazine movement, Suitable for die mould / educational machines application, where tool change time is not critical. Option of tool grippers in plastic or steel, Low cost solution, Available for 40 size taper tools in magazine capacities of 12, 16, 20 and 24.
Face Mounting ATC Models are available
| Taper Size | Magazine Capacity (Tools) | Max. Tool Dia (mm) | Max. Tool Length (mm) | Max. Tool Weight (kg) | Magazine Index Time (mm) | Magazine Movement for Tool Change (mm) | Taper Options |
|---|---|---|---|---|---|---|---|
| 12 | 12 | 105 | 200 | 7 | 0.5 | 200 | BT/ISO |
| 16 | 80 | ||||||
| 16 | 80 | 200 | 7 | 0.75 | 250 | ||
| 20 | 90 | ||||||
| 24 | 100 |
