PHS Open Centre with Safety Valve with Coolant Collector and Proximity Sensors - Standard Product, PHS, Open Centre with Safety Valve, without Coolant Collector and without Proximity Sensors, Above combinations with Rotary Coolant Union.
Technical Specifications
| Model | Max.Pull kg | Pull Area cm2 | Piston Dia mm. | Piston Travel mm. | Max.Speed RPM | Leakage at 30 bar and 50°c kg | Weight (approx) kg | GD2 kg-m2 |
|---|---|---|---|---|---|---|---|---|
| PSS-1020 | 2800 | 79 | 105 | 20 | 6000 | 0.8 | 10 | 0.0129 |
| PSS-1225 | 4000 | 113 | 125 | 25 | 6000 | 0.8 | 12 | 0.0264 |
| PSS-1530 | 5700 | 160 | 150 | 30 | 5500 | 0.8 | 15 | 0.053 |
| PSS-2035 | 10150 | 290 | 200 | 35 | 5500 | 0.8 | 25 | 0.1629 |

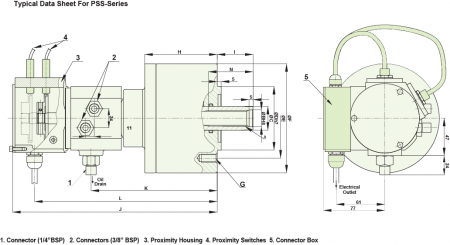

| Model | Ø A mm | Ø B mm | Ø C mm | Ø D mm | Ø E mm | Ø F mm | Ø G mm | H | Ø I max | Ø I min | J mm | K mm | L mm | M mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PSS-1020 | M20X2.5 | 21H8 | 30h6 | 80h7 | 100 | 137 | 6-M10X20 | 91 | 45 | 25 | 257 | 158.5 | 229.5 | 56 |
| PSS-1225 | M24X3 | 25H8 | 35h6 | 110h7 | 130 | 162 | 6-M12X24 | 99 | 51 | 26 | 265 | 166.5 | 237.5 | 44 |
| PSS-1530 | M30X3.5 | 31H8 | 45h6 | 110h7 | 130 | 190 | 12-M12X24 | 104 | 56 | 26 | 270 | 171.5 | 242.5 | 55 |
| PSS-2035 | M36X4 | 37H8 | 55h6 | 120h7 | 145 | 245 | 12-M16X30 | 126 | 70 | 35 | 300 | 192.5 | 263.5 | 65 |
