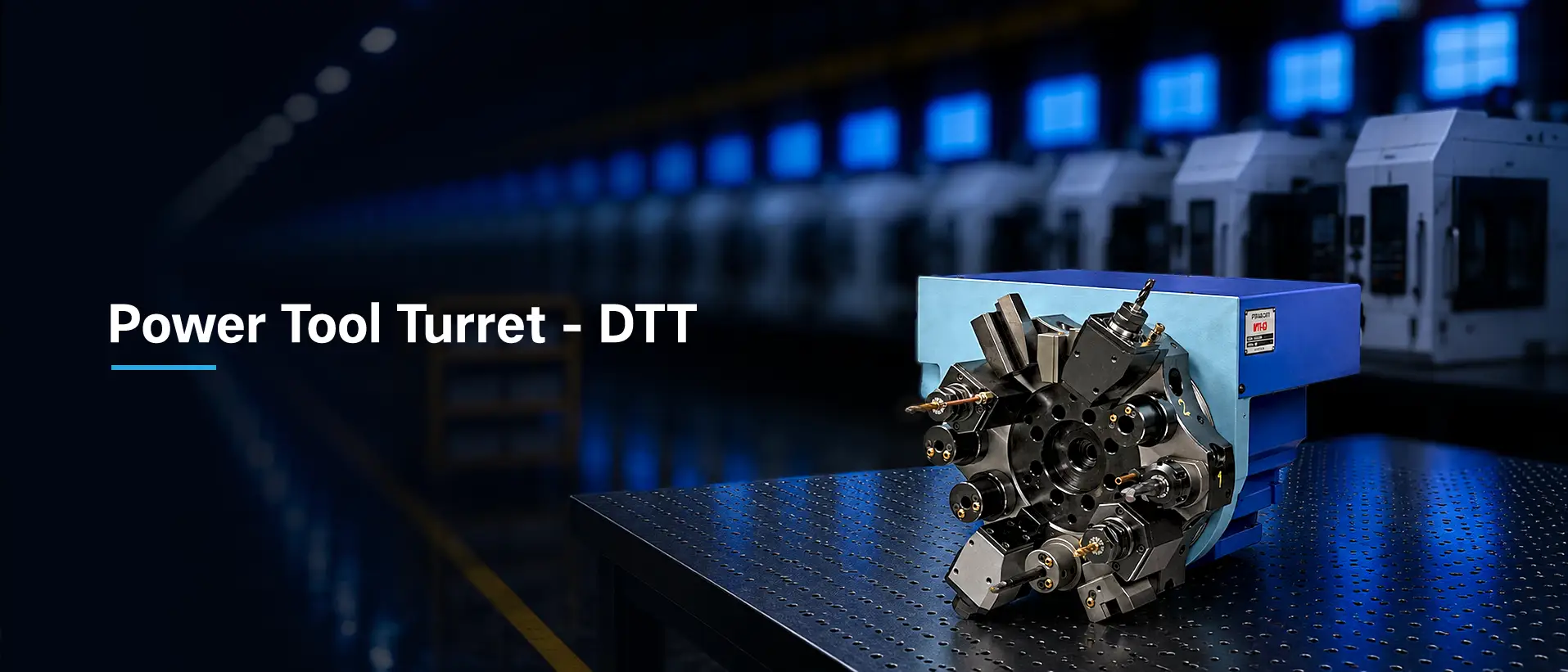

Main Features
Two motor operation; Electric motor for turret indexing and servo motor tool drive.
Turret indexing is through parallel cam index mechanism.
Rotary tool unit of Modular construction fitted on BTP series turret for live function.
Only tool in working position gets drive.
8, 10 or 12 positions option.
Technical Specifications

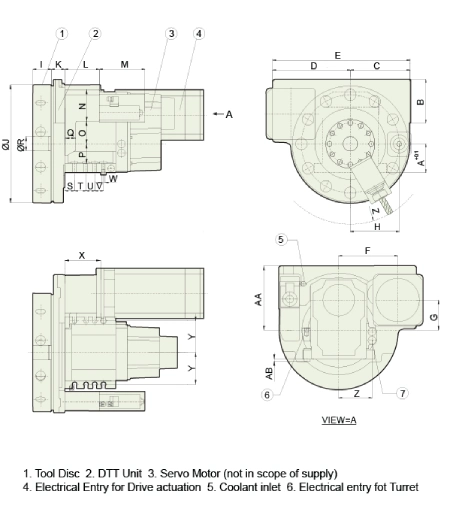

| DTT-63 | DTT-80 | DTT-100 | |
|---|---|---|---|
| A | 63 | 80 | 100 |
| B | 75 | 101.5 | 150.5 |
| C | 155 | 177 | 208 |
| D | 259 | 267 | 270 |
| E | 416 | 444 | 478 |
| F | 180 | 201 | 205 |
| G | 86 | 100 | 105 |
| H | 120 | 135 | 170 |
| I | 52 | 56 | 64 |
| J | 298 | 338 | 410 |
| K | 40 | 43 | 47 |
| L | 120 | 120 | 120 |
| M | 115 | 117 | 116.5 |
| N | 95 | 106 | 109 |
| O | 66 | 66 | 79 |
| P | 43 | 55 | 68 |
| Q | 32 | 38 | 38 |
| R | 30 | 40 | 50 |
| S | 24 | 37 | 34 |
| U | 30 | 33 | 30 |
| V | 30 | 32 | 30 |
| W | M8 | M10 | M12 |
| X | 127 | 127 | 126 |
| Y | 165 | 190 | 220 |
| Z | 389 | 452 | 558 |
| AA | 163 | 190 | 223 |
| AB | 7.5 | 7.5 | 7.5 |
| AC | 91 | 100 | 115 |
| Specifications | DTT-60 | DTT-80 | DTT-100 | |
|---|---|---|---|---|
| No of Stations | 8/12 | 8/12 | 8/12 | |
| VDI Tool Shank | mm | ø20 | ø30 | ø40 |
| PCD of the Tooling | mm | 200/240 | 240/270 | 340/370 |
| Tool Coupling Profile | DIN5480 | DIN5482 / DIN5480 | DIN5482 / DIN5480 | |
| Max Power (Tool Drive) | kW | 5 | 6 | 8 |
| Max tool speed | rpm | 6000 | 6000 | 5000 |
| Max Torque | Nm | 15 | 20 | 40 |
| Transmissible Ratio | 1:1 | 1:1 | 1:1 | |
| Tool Drive Motor Options | ||||
| Fanuc | Alpha 1.5 | Alpha 2 | Alpha 3 | |
| Siemens | 1FT6064 | 1FT6084 | 1FT6086 | |
