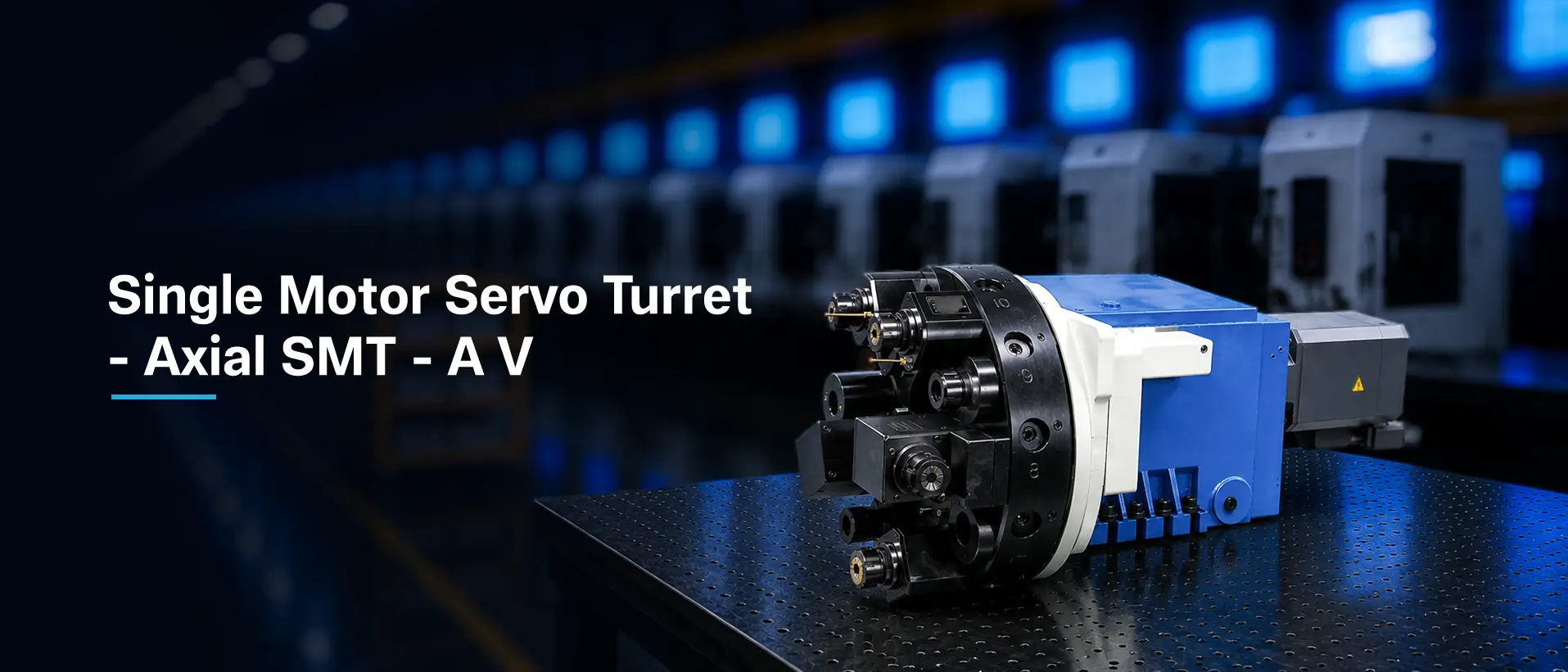

Main Features
Single Servo motor for turret indexing and Live Tool Drive.
Turret clamp through hydraulic Wyver allows higher rigidity and stability.
Axial mounting of ms with DIN 5480 drive interface.
Option for supply of high pressure coolant from centre of turret.
8, 10 or 12 position options.
Technical Specifications

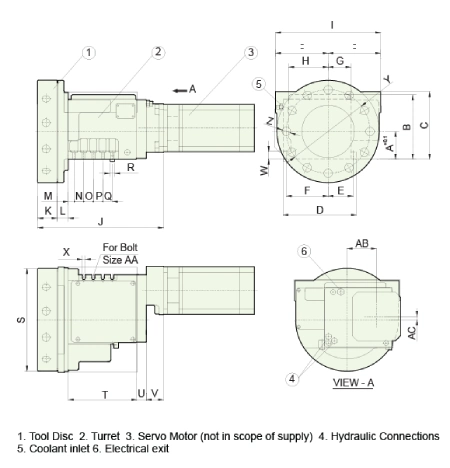

| SMT-80A V | SMT-100A V | |
|---|---|---|
| A | 100 | 125 |
| B | 232 | 272 |
| C | 243 | 285 |
| D | 264 | 325 |
| E | 90 | 110 |
| F | 150 | 185 |
| G | 82 | 100 |
| H | 142 | 175 |
| I | 378 | 424 |
| J | 558 | 524 |
| K | 70 | 75 |
| L | 40 | 47 |
| M | 22 | 24 |
| N | 34 | 40 |
| O | 34 | 40 |
| P | 34 | 40 |
| Q | 34 | 40 |
| R | 20 | 26 |
| S | 368 | 422 |
| T | 244 | 290 |
| U | 36 | 50 |
| V | 68 | 62 |
| W | 25 | 25 |
| X | 11 | 13 |
| Y | 300 | 340 |
| Z | VDI30 | VDI140 |
| AA | M10 | M12 |
| AC | 12 | 25 |
| Specifications | SMT-80A V | SMT-100A V | |
|---|---|---|---|
| No of Stations | 8/12 | 8/12 | |
| Inertia of transportable masses | kgm² | 1.8 | 3.2 |
| Turret Indexing Time (for next station) | sec | 0.14 | 0.16 |
| Time for next partial step (Without acceleration and braking) | sec | 0.04 | 0.05 |
| Turret Clamp Time | sec | 0.1 | 0.1 |
| Turret De-clamp Tme | sec | 0.1 | 0.1 |
| Indexing Frequency | min-1 | 20 | 16 |
| Hydraulic Pressure | kg/cm² | 50 | 50 |
| Clamping Force | KGF | 2,300 | 4,050 |
| Turret Weight (without Tool Disk, Motor) | kg | 110 | 130 |
| Tool Drive | SMT-80A V | SMT-100A V | |
|---|---|---|---|
| Tool Holder Size | BMT-55 | BMT-65 | |
| Tool Coupling Profile | DIN5480 | DIN5480 | |
| Max. Speed | rpm | 5000 | 4500 |
| Max. Power | kW | 8 | 10 |
| Transmission Ratio | 1:1 | 1:1 | |
| Turrent Motor | ||
|---|---|---|
| Delta Servo Motor | Model | ECMA-1080 7CS |
| Power | kW | 0.75 |
| Rated Speed | rpm | 3000 |
| Rated Torque | Nm | 2.4 |
| Live tool Motor | SMT-80A V | SMT-100A V |
|---|---|---|
| Siemens Motor | 1FT6083 | 1FT6086 |
| Fanuc Spindle Motor | α 2 | α 3 |
| Fanuc Servo Motor | α 12 iS | α 22 iS |
