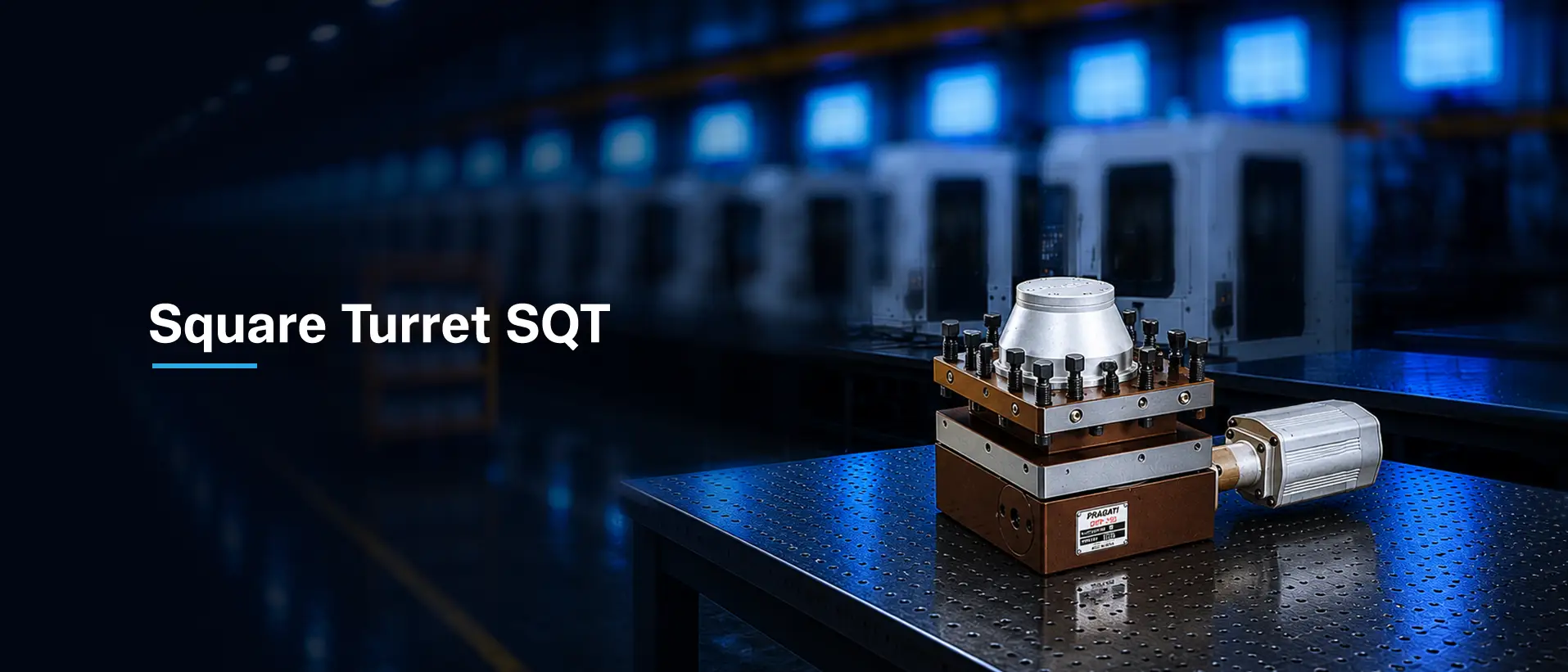

For use on flat bed CNC lathes, 3 Piece face gear allows turret to be indexed without lifting, Clamping through Cam and disc spring ensures consistent rigid clamping, Fast unidirectional indexing, Option with internal coolant allows use of BWS drills 4 Position as standard, option 6 position.

Square Turret are available

DOWNLOAD CATALOG

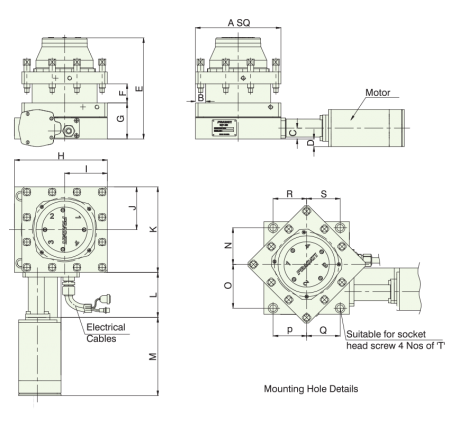

Series Model Lathe A B C D E F G H I J K L M N O P Q R S T Wt. Kg
130 134-51 625 134 15 15.5 20.5 160 29 51 138 67 67 134 83.5 147.5 58 62 47 43 52 48 M8 14
136-57 6125 136 16 21.5 14.5 166 31 57 148 68 68 136 83.5 147.5 57 69 51 57 51 57 M10 15
160 166-70 6132 166 20 21 23.5 196 40 70 180 83 83 166 87 149 71 85 65 65 65 65 M12 25
166-81 6140 166 25 21 23.5 202 37 81 192 83 83 177 87 149 71 97 71 81 71 81 M12 26
166-115 6150 166 25 55 10.5 236 37 115 192 83 83 177 87 149 71 97 71 81 71 81 M12 31
166-121 6150 166 25 61 16.5 242 37 121 192 83 83 177 87 149 71 97 71 81 71 81 M12 32
166-125 6150 166 25 65 20.5 246 37 125 192 83 83 177 87 149 71 97 71 97 71 81 M12 32
163-110 6132 163 22 21 23.5 198 40 70 175 81.5 81.5 177 87 149 65.5 80.5 61.5 64.5 61.5 64.5 M12 24
180-110 21180 180 28 58 5.5 239 45 110 192 90 90 184 87 149 78 90 78 74 78 74 M12 38
190 192-81 6140 192 25 30.5 14 219 41 81 196 96 96 192 86 149 81 87 76 76 76 76 M12 35
192-110 6150 192 25 59.5 15 248 41 110 196 96 96 192 86 149 81 87 76 76 76 76 M12 41
192-125 6150 192 25 74.5 30 263 41 125 196 96 96 192 86 149 81 87 76 76 76 76 M12 43
200 200-110 6163 200 25 30.5 14 234 40 110 200 100 100 200 86 149 88.5 88.5 65 65 75 75 M12 44
200-120 6163 200 32 30.5 14 244 50 120 200 100 100 200 86 149 88.5 88.5 65 65 75 75 M12 M12

Square Turret are available

Specifications Units\ Series SQT-130 SQT-160 SQT-190 SQT-200
No. of stations 4 4 4 4
Tool shank size mm 16x16 20x20 25x25 32x32
Indexing time (50Hz) Including clamping 90° sec 1.5 1.7 1.7 1.7
180° sec 2 2.3 2.4 2.4
270° sec 2.6 3 3.2 3.2
Turret drive motor 3Ph, 415/220V, 50/60Hz Power kVA 0.9 1.2 1.2 1.2
Rated current A 1.3/2.6 1.6/3.6 1.6/3.6 1.6/3.6
Clamping force kg 700 1400 2100 3200
Tool Indexing cycle/min 8 8 8 8
Tool weight max. per side kg 2.5 3.5 4.5 5.5
Boring bar size mm Ø20 Ø25 Ø32 Ø40
