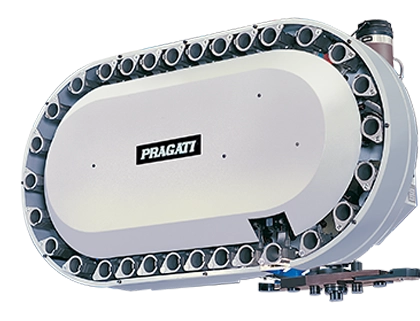

Magazine rotation either by cam index or by servo drive. Encoder for synchronisation of arm movements with tool clamp / unclamp in machine spindle. Tool Gripper plates of gripper arm are designed as separate parts for easy conversion of ATC from one tool standard to another. Option of mechanical tool load unload feature, Face Mounting, Magazine capacities of 30, 32, 40, 60 and 90 tools.

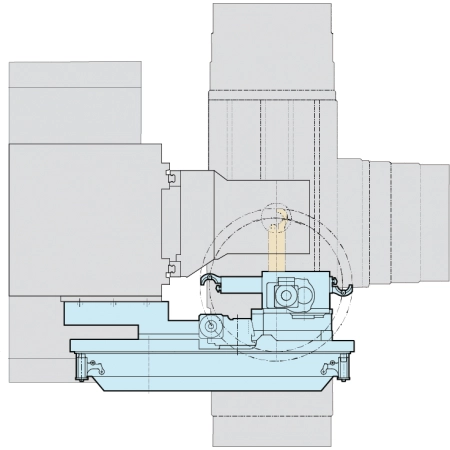

Face Mounting ATC Models are available
| Taper Size | Magazine Capacity (Tools) | Max. Tool Dia (mm) | Max. Tool Length (mm) | Max. Tool Weight (kg) | Tool Change Time for Standard Arm in sec | Gripper Arm Size (mm) | Taper Options | |
|---|---|---|---|---|---|---|---|---|
| Std. | Option | |||||||
| 30 | 50 | 50 | 250 | 5 | 1.4 | 225 | 175 | BT/ISO/CAT/HSK/CAPTO |
| 60 | 200 | |||||||
| 80 | ||||||||
| 40 | 30 | 78 | 300 | 8 | 1.4 | 225 | 250 | BT/ISO/CAT/HSK/CAPTO |
| 32 | 275 | |||||||
| 40 | 300 | |||||||
| 60 | 325 | |||||||
| 90 | ||||||||
| 50 | 40 | 125 | 400 | 20 | 3 | 300 | 325 | BT/ISO/CAT/HSK/CAPTO |
| 350 | ||||||||
| 60 | 375 | |||||||
| 400 | ||||||||
